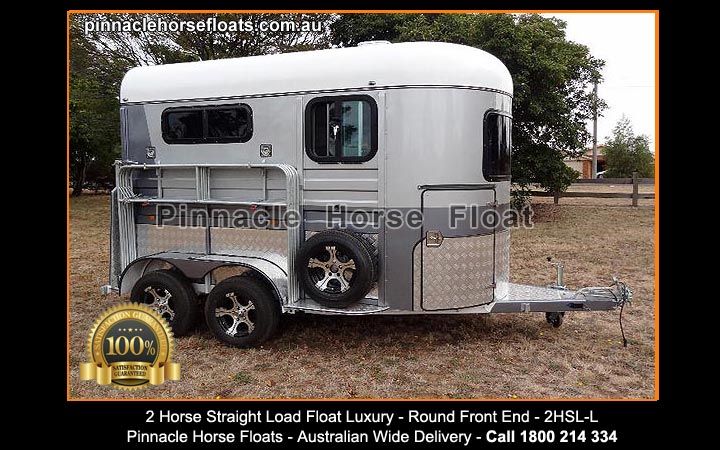

2 Horse Straight Load Float Luxury 2hsl-l
16,600.00 Incl GST


2 Horse Straight Load Luxury Custom Horse Float 2hsl-l


2 Horse Straight Load Luxury New Float  2HSL-L. This luxury horse float is made to Australian standards and comes with all the options, including fold down bedding, side mounted rail fencing, interior lighting, 4 wheel electric braked axles with electric breakaway system, On top quality roller rocker suspension, with 4 x 6 leaf miltary springs, mounted to hot dipped galvanised 4mm chassis. All nuts and bolts are stainless steel,  heavy duty 50mm trailer axles, aluminium mag wheels, inbuit kitchen cupboards, inbuilt saddle cupboard with rack, overhead storage cupboard.

Upgrade your horse float with one of our many option extra's. "Click Here for more info"

You will not find a better built float. Australian wide delivery upon request.

Call today!

INTERIOR & EXTERIOR

  • Drawbar checker plate 1.2mm
  • Floor rubber matting - 10mm
  • Fold up side padding to allow for 2 beds
  • Foldable horse fence mounted on side of float
  • Fully built in kitchen cabinets at front of float
  • Hardwood board for floor and ramp - 24mm
  • Horse protection frame - fully padded
  • Rear door hitches - 6mm copper hinges
  • Rubber matting for horse door - 28mm ribbed rubber matting
  • Rubber matting inner side panels - 6mm rubber matting
  • Rug Rack- Located At Front Of Float
  • Saddle Box- 1500 Height For 3 saddles
  • Side horse rings x 4
  • Water system with stainless tank, tap and 12 volt pump

WINDOWS & DOORS

  • Front window 1 x 1220 x 610
  • Roof fully moulded
  • Rooftop Vents x 2
  • Sliding Windows x 2

WHEELS & TYRES

  • Heavy duty 18R14c light truck tyre
  • Wheels 14" alloy rims

AXLES & SUSPENSION

  • Axles solid 2 x 50 x 50 RHS, 4 wheel electric braked axle
  • Brakes - full twin axle electric brakes with "Brake Away System"
  • Nuts and Bolts - all stainless steel
  • Suspension - 6 leaf roller rocker tandem spring axles

CHASSIS & FRAME

  • Body panels galvanised 1.2mm
  • Double dipped galvanised RHS 4mm Chassis
  • Frame double dipped RHS 2.5mm

CHASSIS & FRAME

  • Rear lights - L.E.D
  • Retro reflectors x 8 units
  • Side lights x 6 units
  • Trailer Plug - square seven pin

DIMENSIONS (L x W x H)

  • Size Of Side Door - 1755 x 615
  • Size Of Rear Upper Door - 2020 x 1065
  • Size Of Ramp Door - 2020 x 1210

  • Body Dimensions - 3475 x 1750 x 2230
  • Inner Dimensions - 3450 x 1700 x 2155
  • Overall Dimensions - 4325 x 2270 x 2590
  • Size Of Bays - 230cm Long x 75cm Wide

WEIGHT

  • Gross - 3500kg
  • Tare - 1400kg
