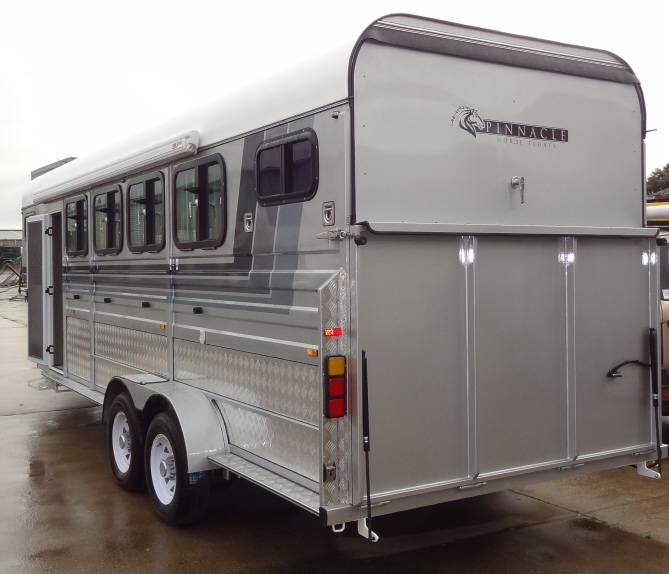

4 Horse Angle Load Gooseneck 4HAL- GN
36,400.00
Click here to
Calculate Shipping

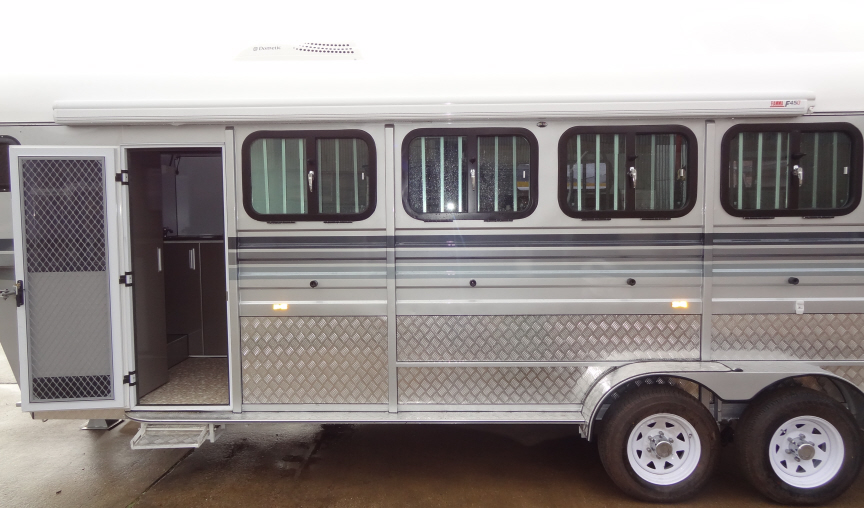

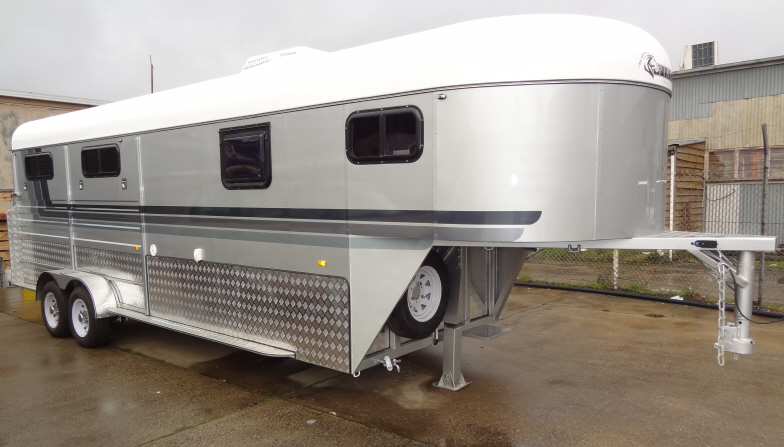

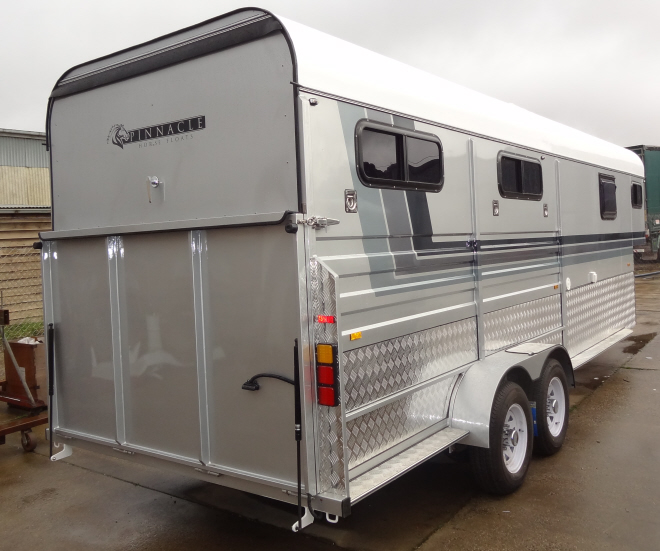

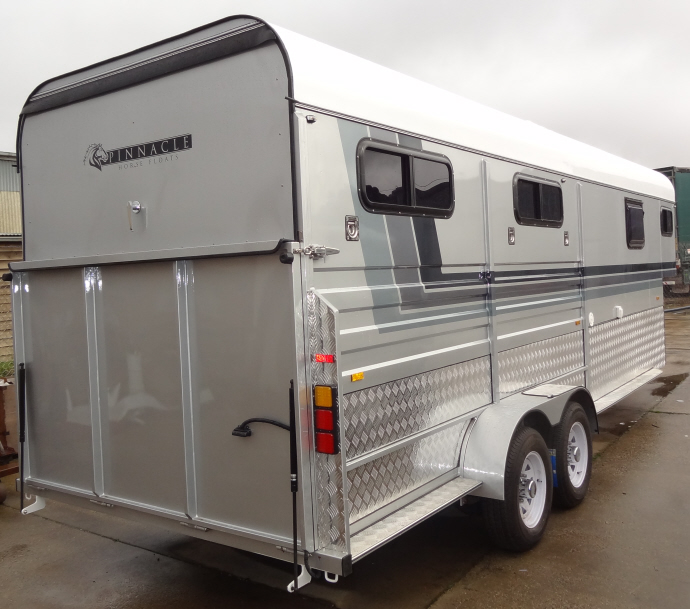

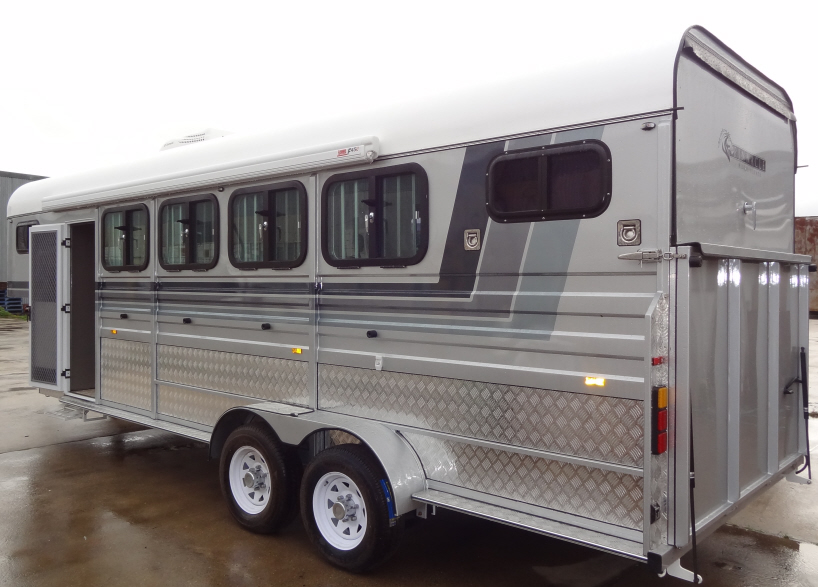

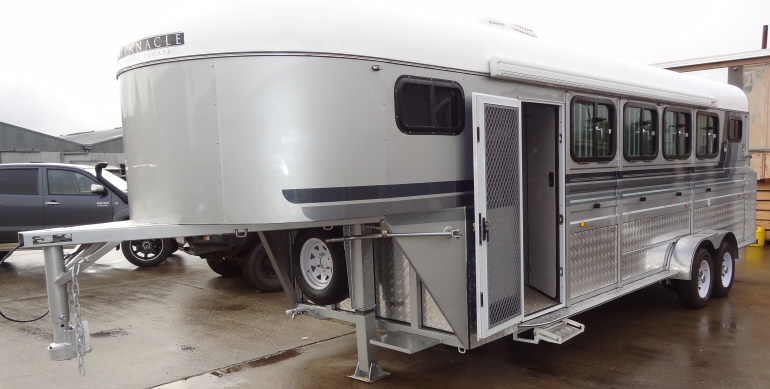

NEW 4 HORSE ANGLE LOAD GOOSE NECK HORSE FLOAT WITH LIVING, AWNING & AIRCON 4HAL-G

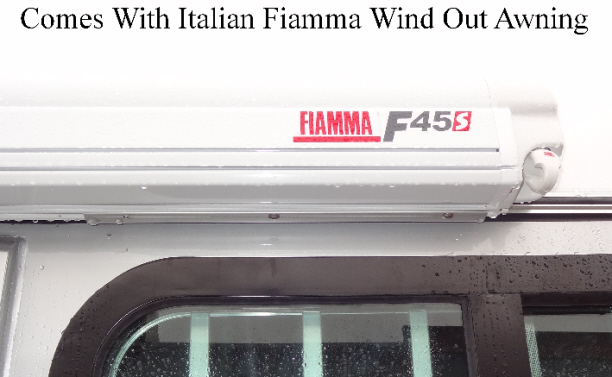

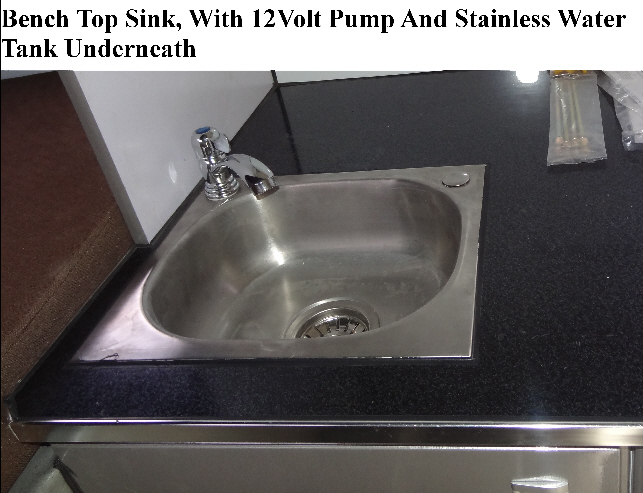

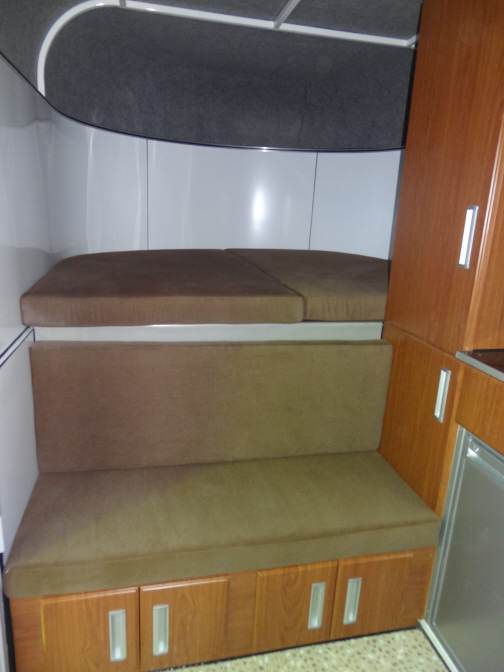

This 4 Horse Angle Load Gooseneck Float Comes With All Options Including Wind Out Italian Fema Awning, Double Bed & Full Size Kitchen With Self Closing drawers, Wardrobe, 240Volt Refrigerator Standard or Optianal Waeko 12/240v Fridge Freezer, 240v Microwave & Benchtop With Sink & Tap With Electric 12v Pump,  Also Has 2 Wheel Electric Braked Axles With Electric Breakaway System,On Top Quality Roller Rocker Suspension,With 4 x 8 Leaf Miltary Springs, Mounted To Hot Dipped Galvanised 4mm Chassis All Nuts & Bolts Are Stainless Steel, Heavy Duty 50mm Trailer Axles, You Will Not Find A Better Built Float.

Comes With the Following Features-

  • Double Dipped Galvanised RHS 4mm Chassis
  • Frame Double Dipped RHS 2.5mm
  • Body Panels- Galvanised 1.5mm
  • Roof- Fully Moulded
  • Nuts & Bolts- All Stainless Steel

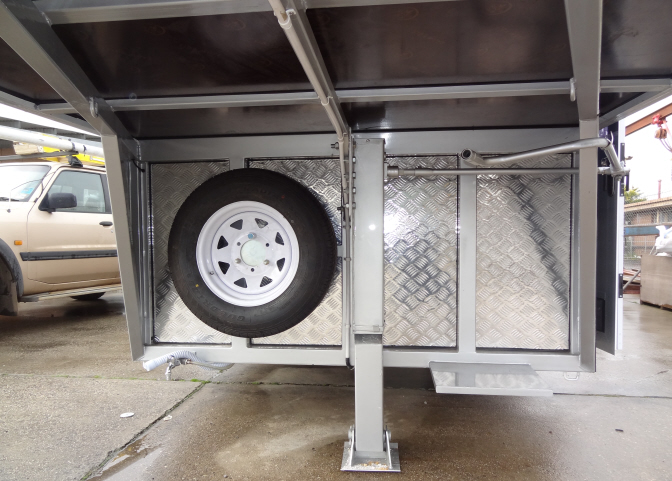

  • Wheels- 15" Steel Rims With Heavy Duty 195R15 Light Truck Tyres, New
  • Axles 2 x 50 x 50 RHS, 1 With Electric Braked Axle
  • Suspension- 8 Leaf Roller Rocker Tandem Spring Axles
  • Brakes- Full Single Axle Electric Brakes With Brake Away System
  • Front Window- 1220 x 610
  • Side Windows- 4 vertical Open, 6 Sliding Windows, 1 Caravan Window

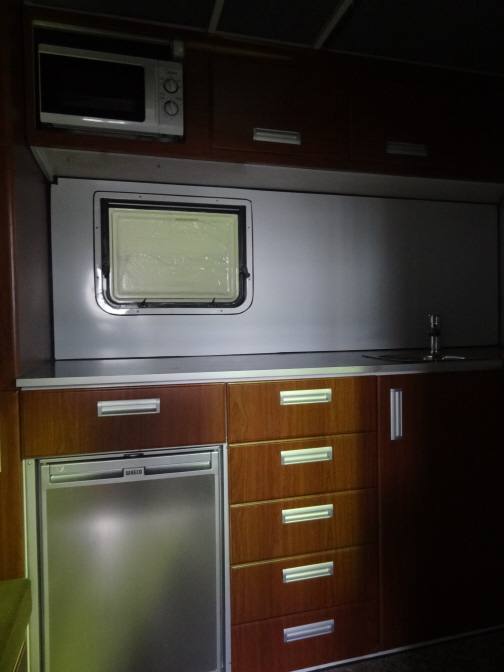

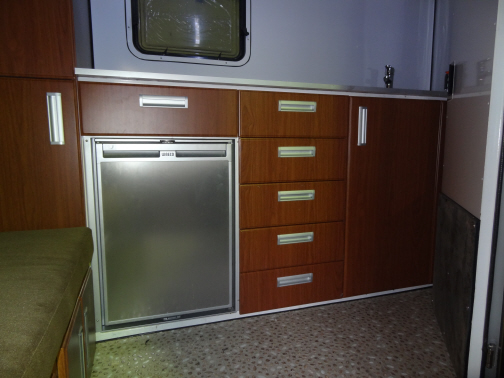

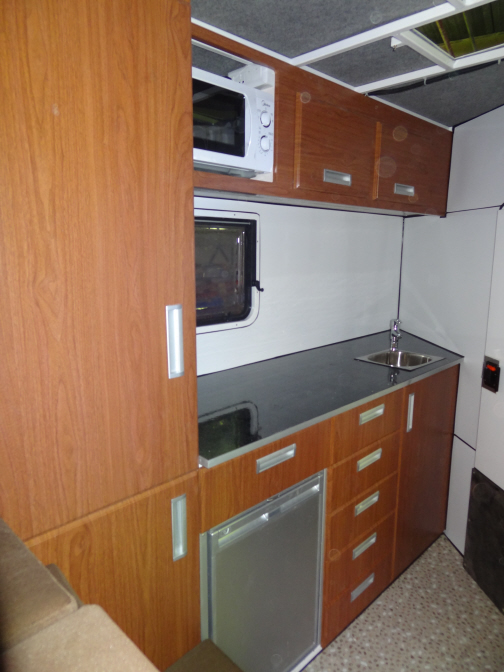

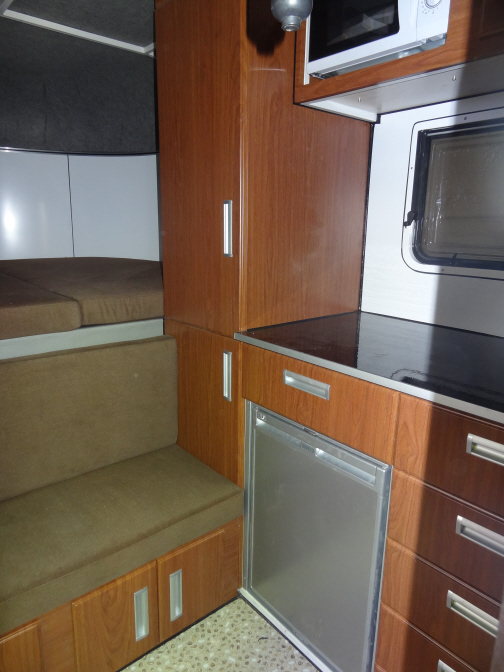

  • Kitchen with self closing drawers and wardrobe
  • 240volt inbuilt fridge and microwave

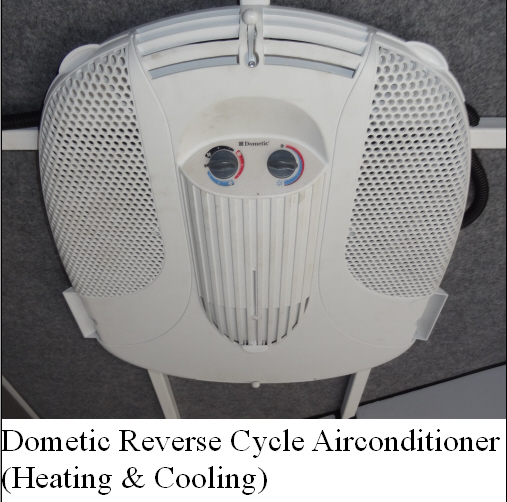

  • 240volt Dometic Heating & Cooling Airconditioner
  • Twin Saddle Rack- In Saddle Box
  • Rug Rack- Full Length Overhead
  • Has 2 x Rooftop Vents

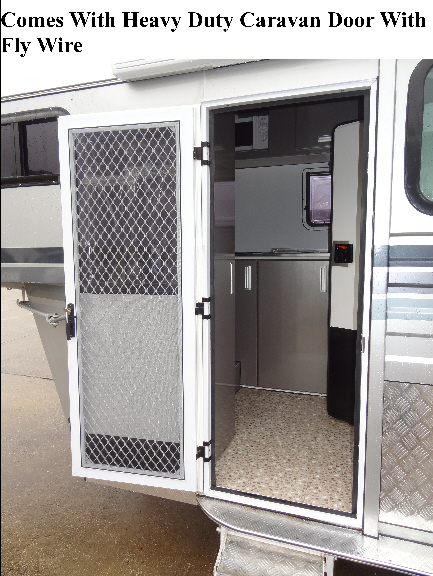

  • Size Of Side Door- 1755 x 615
  • Size Of Ramp Door- 2020 x 1210
  • Rear Door Hitches- 6mm Copper Hinges
  • Drawbar Checker Plate 1.2mm
  • Trailer Plug- Square Seven Pin
  • Side Lights- 6 Units
  • Rear Lights- Led
  • Retro Reflectors- 8 Units

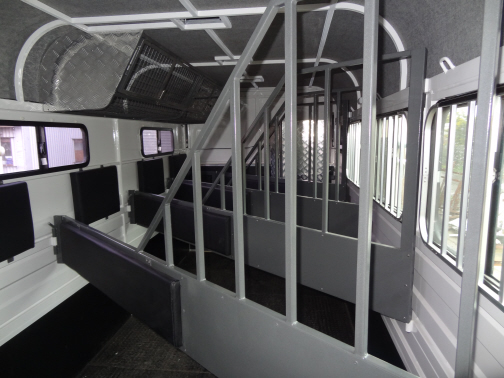

  • Horse Protection Frame- Fully Padded
  • Side Horse Rings- 4
  • Rubber Matting For Horse Door- 28mm Ribbed Rubber Matting
  • Floor Rubber Matting- 10mm Rubber Matting
  • Rubber Matting Inner Side Panels- 6mm Rubber Matting
  • Wood Board For Floor And Ramp- 18mm Marine Ply
  • Size Of Bays- 230cm Long x 65cm Wide
  • Overall Dimensions mm- 8660(L)x2500(W)x2590(H)
  • Body Dimensions- 8050(L) x 1980(W) x 2230(H)
  • Inner Dimensions- 8025(L) x 1930(W) x 2155(H)
  • Tare Mass- 2300kg
  • GTM- 4800kg
